FIFA Ball Ramp – Ball Roll and Ball Rebound Tool - For testing soccer, baseball, softball, cricket fields and polo fields. BALL-ROLL-01-M

The Ball Roll and Ball Rebound Tool will perform FIFA Ball Roll Test and FIFA Ball Rebound Tests. For determination of Ball Roll (FIFA Test Method 03), a ball is rolled down the ramp on the device and allowed to roll across the athletic field surface until it comes to rest.

The Ball Roll and Ball Rebound Tool will perform FIFA Ball Roll Test and FIFA Ball Rebound Tests. For determination of Ball Roll (FIFA Test Method 03), a ball is rolled down the ramp on the device and allowed to roll across the athletic field surface until it comes to rest. The distance the ball has travelled across the surface is measured and recorded. For the determination of Ball Rebound (FIFA Test Method 01), a ball is released from the Ball Roll and Ball Rebound Tool 2m above the turf surface and the height of its rebound from the surface is calculated. Unit is suitable for natural grass fields & synthetic turf fields.

The ramp rails can also be moved closer together to allow testing for baseball, softball and cricket fields as well as polo fields.

The Ball Roll and Ball Rebound Tool unit comes almost fully assembled, simply slide two parts together and install one bolt. When transporting the unit it can be folded in half and then unfolds. On the ball rebound side of the device. raise the measuring scale until the measuring label lines up and begin testing. Unit also folds flat for moving from one area to another without disassembling for ease of testing.



The Ball Roll and Ball Rebound Tool will perform FIFA Ball Rebound (FIFA Test Method 01), a ball is released from the Ball Roll and Ball Rebound Tool 2m above the turf surface and the height of its rebound from the surface is calculated.

FIFA Ball Ramp – Ball Roll and Ball Rebound Tool - For testing soccer, baseball, softball, cricket fields and polo fields assembly

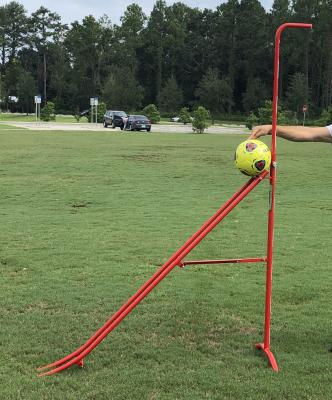

FIFA Ball Ramp set up for ball roll testing (FIFA Test Method 03)

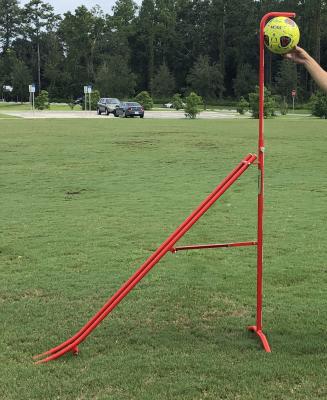

FIFA Ball Ramp set up for ball rebound testing (FIFA Test Method 01)
The Ball Roll and Ball Rebound Tool folded for tranport
FIFA Ball Ramp set up for ball roll testing (FIFA Test Method 03)
FIFA Ball Ramp set up for ball rebound testing (FIFA Test Method 01)
The Ball Roll and Ball Rebound Tool folded for transport
FIFA Ball Roll and Ball Rebound Tool - Unassembled Ball Roll and Ball Rebound unit
FIFA Ball Roll and Ball Rebound Tool - Unfold top section and insert foot as shown
FIFA Ball Roll and Ball Rebound Tool - Place bolt provided through holes in top section and foot and secure (do not over tighten)
Unassembled Ball Roll and Ball Rebound unit
Unfold top section and insert foot as shown
Place bolt provided through holes in top section and foot and secure (do not over tighten)
FIFA Ball Roll and Ball Rebound Tool - Insert bottom section of ball ramp into top section as shown
FIFA Ball Roll and Ball Rebound Tool - Slide both sections together
FIFA Ball Roll and Ball Rebound Tool - Loosen thumb screw on top section and extend ball bounce section. Align two meter ruler as shown and tighten thumb screw
Insert bottom section of ball ramp into top section as shown
Slide both sections together
Loosen thumb screw on top section and extend ball bounce section. Align two meter ruler as shown and tighten thumb screw

FIFA Ball Ramp – Ball Roll and Ball Rebound Tool - Adjusting rails for testing baseball, softball, cricket fields and polo fields

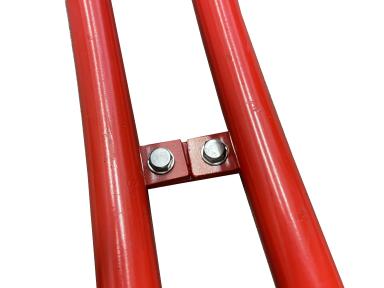

Adjusting rails for testing baseball, softball, cricket fields and polo fields Simply remove bolts from rails for testing baseball, softball, cricket fields and polo fields Move rails closer together and resecure bolts for testing baseball, softball, cricket fields and polo fields
Adjusting rails for testing baseball, softball, cricket fields and polo fields Simply remove bolts from rails for testing baseball, softball, cricket fields and polo fields Move rails closer together and resecure bolts for testing baseball, softball, cricket fields and polo fields
Ball Roll and Ball Rebound Tool is ready for testing baseball, softball, cricket fields and polo fields Place ball on ramp and release ball for testing baseball, softball, cricket fields and polo fields ball roll length Also use the rebound portion of the device to test baseball, softball, cricket fields and polo fields for ball rebound
Ball Roll and Ball Rebound Tool is ready for testing baseball, softball, cricket fields and polo fields Place ball on ramp and release ball for testing baseball, softball, cricket fields and polo fields ball roll length Also use the rebound portion of the device to test baseball, softball, cricket fields and polo fields for ball rebound

FIFA Ball Roll Test
Determination of Ball Roll (FIFA Test Method 03)A ball is rolled down the ramp and allowed to roll across the surface until it comes to rest.
The distance the ball has travelled across the surface is recorded.

FIFA Ball Rebound Test
Determination of ball rebound (FIFA Test Method 01)
A ball is released from 2m and the height of its rebound from the surface is calculated.

Specifications
Size Folded: 50” x 13” x 8” inches (127 x 33 x 20 cm)
Size open and rebound test arm extended: 66” x 20” x 79” inches (168 x 51 x 201 cm)
Weight (unboxed): 11 lbs (5 kg)
Construction: All aluminum construction
Unfolds and is ready to use in under 10 seconds
Folds up for transport in under 10 seconds

BALL-ROLL-01-M - FIFA Ball Ramp – Ball Roll and Ball Rebound Tool - For testing soccer, baseball, softball, cricket fields and polo fields
